Informatie afmetingen balkstaal in tabel. Profielafmetingen in mm.

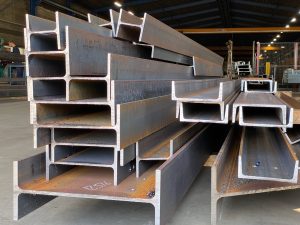

H-profiel, I-profiel en U-profiel leverbaar in verschillende kwaliteiten. Bijvoorbeeld S235, S275 en S355.
Bekijk hier de verschillende staalkwaliteiten.
 | Profiel | Hoogte (mm) | Breedte (mm) | Gewicht (kg/m) | tw (mm) | tf (mm) | |
|---|---|---|---|---|---|---|---|
| HE100A | 96 | 100 | 17.1 | 5 | 8 | HEA 100 | |
| HE120A | 114 | 120 | 20.3 | 5 | 8 | HEA 120 | |
| HE140A | 133 | 140 | 25.1 | 5.5 | 8.5 | HEA 140 | |
| HE160A | 152 | 160 | 31 | 6 | 9 | HEA 160 | |
| HE180A | 171 | 180 | 36.2 | 6 | 9.5 | HEA 180 | |
| HE200A | 190 | 200 | 43.1 | 6.5 | 10 | HEA 200 | |
| HE220A | 210 | 220 | 51.5 | 7 | 11 | HEA 220 | |
| HE240A | 230 | 240 | 61.5 | 7.5 | 12 | HEA 240 | |
| HE260A | 250 | 260 | 69.5 | 7.5 | 12.5 | HEA 260 | |
| HE280A | 270 | 280 | 77.8 | 8 | 13 | HEA 280 | |
| HE300A | 290 | 300 | 90 | 8.5 | 14 | HEA 300 | |
| HE320A | 310 | 300 | 99.5 | 9 | 15.5 | HEA 320 | |
| HE340A | 330 | 300 | 107 | 9.5 | 16.5 | HEA 340 | |
| HE360A | 350 | 300 | 114 | 10 | 17.5 | HEA 360 | |
| HE400A | 390 | 300 | 127 | 11 | 19 | HEA 400 | |
| HE450A | 440 | 300 | 142 | 11.5 | 21 | HEA 450 | |
| HE500A | 490 | 300 | 158 | 12 | 23 | HEA 500 | |
| HE550A | 540 | 300 | 169 | 12.5 | 24 | HEA 550 | |
| HE600A | 590 | 300 | 181 | 13 | 25 | HEA 600 | |
| HE650A | 640 | 300 | 193 | 13.5 | 26 | HEA 650 | |
| HE700A | 690 | 300 | 208 | 14.5 | 27 | HEA 700 | |
| HE800A | 790 | 300 | 229 | 15 | 28 | HEA 800 | |
| HE900A | 890 | 300 | 256 | 16 | 30 | HEA 900 | |
| HE1000A | 990 | 300 | 277 | 16.5 | 31 | HEA 1000 |
| Profiel | Hoogte (mm) | Breedte (mm) | Gewicht (kg/m) | tw (mm) | tf (mm) |
|---|---|---|---|---|---|---|
| HE100B | 100 | 100 | 20.8 | 6 | 10 | |
| HE120B | 120 | 120 | 27.2 | 6.5 | 11 | |
| HE140B | 140 | 140 | 34.4 | 7 | 12 | |
| HE160B | 160 | 160 | 43.4 | 8 | 13 | |
| HE180B | 180 | 180 | 52.2 | 8.5 | 14 | |
| HE200B | 200 | 200 | 62.5 | 9 | 15 | |
| HE220B | 220 | 220 | 72.8 | 9.5 | 16 | |
| HE240B | 240 | 240 | 84.8 | 10 | 17 | |
| HE260B | 260 | 260 | 94.8 | 10 | 17.5 | |
| HE280B | 280 | 280 | 105 | 10.5 | 18 | |
| HE300B | 300 | 300 | 119 | 11 | 19 | |
| HE320B | 320 | 300 | 129 | 11.5 | 20.5 | |
| HE340B | 340 | 300 | 137 | 12 | 21.5 | |
| HE360B | 360 | 300 | 145 | 12.5 | 22.5 | |
| HE400B | 400 | 300 | 158 | 13.5 | 24 | |
| HE450B | 450 | 300 | 174 | 14 | 26 | |
| HE500B | 500 | 300 | 191 | 14.5 | 28 | |
| HE550B | 550 | 300 | 203 | 15 | 29 | |
| HE600B | 600 | 300 | 216 | 15.5 | 30 | |
| HE650B | 650 | 300 | 225 | 16 | 31 | |
| HE700B | 700 | 300 | 241 | 17 | 32 | |
| HE800B | 800 | 300 | 262 | 17.5 | 33 | |
| HE900B | 900 | 300 | 291 | 18.5 | 35 | |
| HE1000B | 1000 | 300 | 314 | 19 | 36 |
| Profiel | Hoogte (mm) | Breedte (mm) | Gewicht (kg/m) | tw (mm) | tf (mm) |
|---|---|---|---|---|---|---|
| HE100M | 120 | 106 | 42.6 | 12 | 20 | |
| HE120M | 140 | 126 | 53.1 | 12.5 | 21 | |
| HE140M | 160 | 146 | 64.4 | 13 | 22 | |
| HE160M | 180 | 166 | 77.6 | 14 | 23 | |
| HE180M | 200 | 186 | 90.6 | 14.5 | 24 | |
| HE200M | 220 | 206 | 105 | 15 | 25 | |
| HE220M | 240 | 226 | 120 | 15.5 | 26 | |
| HE240M | 270 | 248 | 160 | 18 | 32 | |
| HE260M | 290 | 268 | 176 | 18 | 32.5 | |
| HE280M | 310 | 288 | 192 | 18.5 | 33 | |
| HE300M | 340 | 310 | 242 | 21 | 39 | |
| HE320M | 359 | 309 | 250 | 21 | 40 | |
| HE340M | 377 | 309 | 253 | 21 | 40 | |
| HE360M | 395 | 308 | 255 | 21 | 40 | |
| HE400M | 432 | 307 | 261 | 21 | 40 | |
| HE450M | 478 | 307 | 268 | 21 | 40 | |
| HE500M | 524 | 306 | 275 | 21 | 40 | |
| HE550M | 572 | 306 | 284 | 21 | 40 | |
| HE600M | 620 | 305 | 291 | 21 | 40 | |
| HE650M | 668 | 305 | 299 | 21 | 40 | |
| HE700M | 716 | 304 | 306 | 21 | 40 | |
| HE800M | 814 | 303 | 323 | 21 | 40 | |
| HE900M | 910 | 302 | 339 | 21 | 40 | |
| HE1000M | 1008 | 302 | 355 | 21 | 40 |
 | Profiel | Hoogte (mm) | Breedte (mm) | Gewicht (kg/m) | tf (mm) | tw (mm) |
|---|---|---|---|---|---|---|
| IPE80 | 80 | 46 | 6.11 | 3.8 | 5.2 | |
| IPE100 | 100 | 55 | 8.26 | 4.1 | 5.7 | |
| IPE120 | 120 | 64 | 10.6 | 4.4 | 6.3 | |
| IPE140 | 140 | 73 | 13.1 | 4.7 | 6.9 | |
| IPE160 | 160 | 82 | 16.1 | 5 | 7.4 | |
| IPE180 | 180 | 91 | 19.2 | 5.3 | 8 | |
| IPE200 | 200 | 100 | 22.8 | 5.6 | 8.5 | |
| IPE220 | 220 | 110 | 26.7 | 5.9 | 9.2 | |
| IPE240 | 240 | 120 | 31.3 | 6.2 | 9.8 | |
| IPE270 | 270 | 135 | 36.8 | 6.6 | 10.2 | |
| IPE300 | 300 | 150 | 43 | 7.1 | 10.7 | |
| IPE330 | 330 | 160 | 50.1 | 7.5 | 11.5 | |
| IPE360 | 360 | 170 | 58.2 | 8 | 12.7 | |
| IPE400 | 400 | 180 | 67.6 | 8.6 | 13.5 | |
| IPE450 | 450 | 190 | 79.1 | 9.4 | 14.6 | |
| IPE500 | 500 | 200 | 92.4 | 10.2 | 16 | |
| IPE550 | 550 | 210 | 108 | 11.1 | 17.2 | |
| IPE600 | 600 | 220 | 125 | 12 | 19 |
 | Profiel | Hoogte (mm) | Breedte (mm) | Gewicht (kg/m) | tw (mm) | tf (mm) |
|---|---|---|---|---|---|---|
| UNP80 | 80 | 45 | 8.82 | 6 | 8 | |
| UNP100 | 100 | 50 | 10.8 | 6 | 8.5 | |
| UNP120 | 120 | 55 | 13.6 | 7 | 9 | |
| UNP140 | 140 | 60 | 16.3 | 7 | 10 | |
| UNP160 | 160 | 65 | 19.2 | 7.5 | 10.5 | |
| UNP180 | 180 | 70 | 22.4 | 8 | 11 | |
| UNP200 | 200 | 75 | 25.7 | 8.5 | 11.5 | |
| UNP220 | 220 | 80 | 30 | 9 | 12.5 | |
| UNP240 | 240 | 85 | 33.8 | 9.5 | 13 | |
| UNP260 | 260 | 90 | 38.6 | 10 | 14 | |
| UNP280 | 280 | 95 | 42.7 | 10 | 15 | |
| UNP300 | 300 | 100 | 47 | 10 | 16 | |
| UNP320 | 320 | 100 | 60.6 | 14 | 17.5 | |
| UNP350 | 350 | 100 | 61.8 | 14 | 16 | |
| UNP380 | 380 | 102 | 64.3 | 13.5 | 16 | |
| UNP400 | 400 | 110 | 73.2 | 14 | 18 |
